Overview & Applications / Technical Specifications
| AFC/BFC Series Air Source Treatment Unit(FR.L) Combination | ||||||
| Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 | |
| Working medium | AIR | |||||
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | |
| Filter precision | 25um(5,40um is optional) | |||||
| Adjusting pressure range | 0.05~0.85Mpa | |||||
| Max.Adjusting pressure | 0.95Mpa | |||||
| Guaranteed.pressure | 1.5Mpa | |||||
| Working temperature | 5~60°C | |||||
| Lubricator bowl capacity | 25(CC) | 90(CC) | ||||
| Recommended Oil | ISO VG32 or equicalent Oil | |||||
| Weight | 0.7kg | 0.9kg | ||||
| components | Filter Regulator | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
Product Introduction

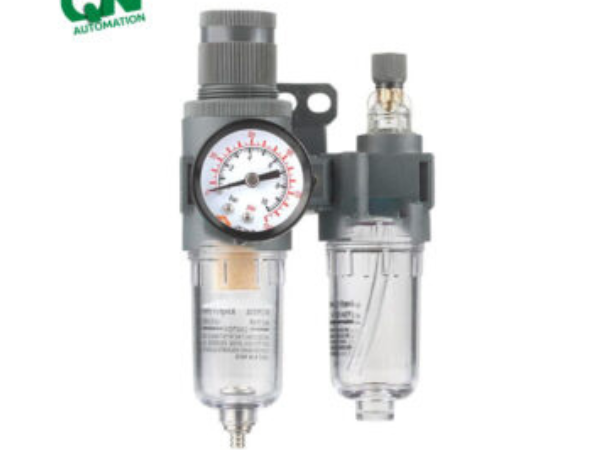

Air Preparation Unit AFC2000 composed of a air filter regulator and a lubricator with 1/4 inch inlet and outlet port, which is used to filter the compressed air and keep the pressure stable in the pneumatic system.
Feature:
1. Light and compact structure, easy to install and use
2.Press-in self-locking design can prevent the setting pressure from being disturbed by external interference.
3. Low pressure loss and high water separation efficiency
4. Transparent inspection cover, can directly observe the amount of oil dripping
Products Parameter
