Overview & Applications / Technical Specifications
| JAC1010-5010 Series Air Filter Combination (FRL Unit) | |||||
| Model | JAC1010 | JAC2010 | JAC3010 | JAC4010 | JAC5010 |
| Guaranteed.pressure reistance | 1.5MPa | ||||
| Max.Working Pressure | 1.0MPa | ||||
| Working Temperature | 5~60℃ | ||||
| Filter precision | 25 micron (5 micron is optional) | ||||
| Recommended Oil | Turbine No.1 oil ISOVG32 | ||||
| Bowl material | Polycarbonate | ||||
| Bowl guard | None | Available | |||
| Pressure Adjusting Range | 0.05~0.7MPa | 0.05~0.85MPa | |||
| Drain Function | Differential Drain (Automatic drain is optional) | ||||
| Valve type | With overflow |
Product Introduction

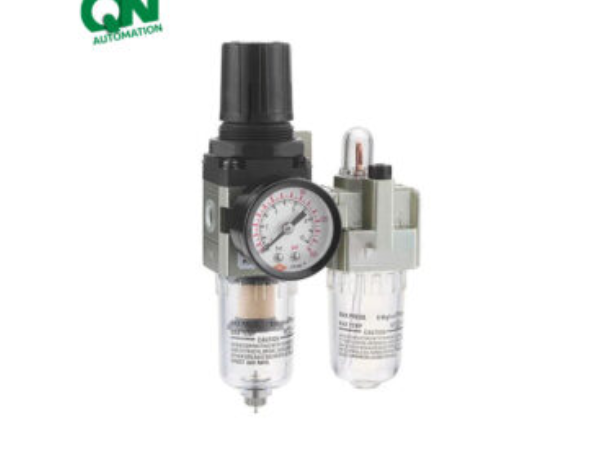

AC2010-02 is a hot sale model in various FRL Unit (the combination of water separator, pressure regulator and lubricator).
It is 1/4 inch port size and compact body and made by aluminum material.
The filter element is 25 micron in standard but you can choose 5 micron. They are both made by brass.
The drain type is manual in standard but you can choose automatic.
Products Parameter
