Overview & Applications / Technical Specifications
| AF/BF Series Filter | |||||
| Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Working medium | AIR | ||||
| Port size | G1/8" | G1/4" | G1/4" | G3/8" | G1/2" |
| Filter precision | 25um(5,50um is optional) | ||||
| Working pressure | 0.95Mpa | ||||
| Guaranteed. pressure | 1.5Mpa | ||||
| Working temperature | 5~60°C | ||||
| Filter bowl capacity | 15(CC) | 60(CC) | |||
| Weight | 0.14kg | 0.33kg | |||
| Material | Body | Aluminum Die-casting Forming | |||
| Container Cup | PE | ||||
| Protective Cover | Iron |

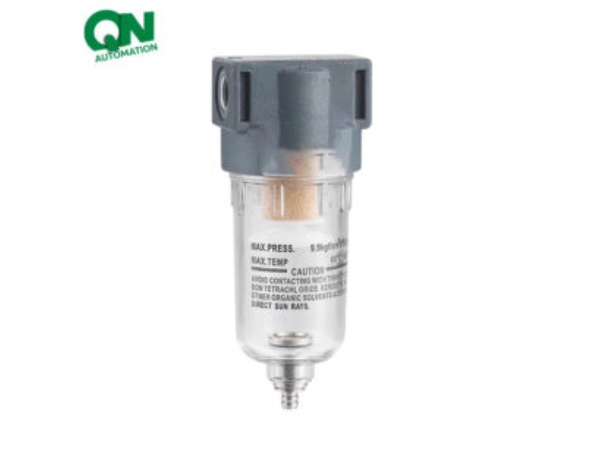

AF is one of the most economic option of air filter for most of markets, the quality and performance is highly balanced, it is the most popular products for the countries in Asia, Africa, Middle East, South America, etc.
1. Improved design with longer life time.
2. Customized color available.
3. Economical selection.
4. Light weight design
Specification
