Overview & Applications / Technical Specifications
| Model | JAD402-02 | JAD402-03 | JAD402-04 |
| Ensured Pressure Resistance | 1.5 Mpa | ||
| Operating Pressure | 0.15 ~ 1.0 Mpa | ||
| Ambient and Fluid Temperature | 5 ~ 60℃ | ||
| Port size | G 1/4" | G 3/8" | G 1/2" |
| Drain bore size | G 1/8" | ||
| Drain status | Normal Open Type | ||
| Working medium | Compressed Air |

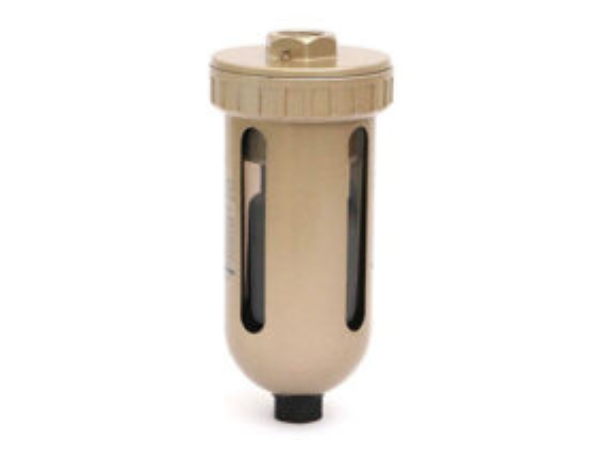

AD: The auto drain are often installed in the place which are inconvenient for manual discharge of sewage, such as the low places of auto-remove piping, frozen type air drying machine, oil separator, air storage tank and the bottom of various air filters. The drainer should be installed vertically and the drain port should face down while using.
Feature:
1. Auto drain/Air shut-off drain/Manual drain
2. No manual operation required
3. The water cup is provided with metal protective cover
