Overview & Applications / Technical Specifications
| Air Filter Combination | MIN | MIDI | MAXI | ||||||
| Manual Drain | Working pressure: 12bar,40um | JOU-1/8"-MINI | JOU-1/4"-MINI | JOU-3/8"-MINI | JOU-3/8"-MIDI | JOU-1/2"-MIDI | JOU-3/4"-MIDI | JOU-3/4"-MAXI | JOU-1"-MAXI |
| Working pressure: 7bar,40um | JOU-1/8"–7MINI | JOU-1/4"–7MINI | JOU-3/8"–7MINI | JOU-3/8"-7-MIDI | JOU-1/2"-7-MIDI | JOU-3/4"-7-MIDI | JOU-3/4"-7-MAXI | JOU-1"-7-MAXI | |
| Working pressure: 12bar,5um | JOU-1/8"-5M-MINI | JOU-1/4"-5M-MINI | JOU-3/8"-5M-MINI | JOU-3/8"-5M-MIDI | JOU-1/2"-5M-MIDI | JOU-3/4"-5M-MIDI | JOU-3/4"-5M-MAXI | JOU-1"-5M-MAXI | |
| Manometer | 0-12bar | OMA-40-16-1/8 | OMA-50-16-1/4 | ||||||
| 0-7bar | OMA-40-10-1/8 | OMA-50-10-1/4 | |||||||
| Medium | compressed Air | ||||||||
| Features of Structure | Sintered filter with water separator；Diaphragm type regulator; Direct constant-density lubricator | ||||||||
| Mounting Type | pipe,brackets,plate | ||||||||
| Assembly position | vertical ±5℃ | ||||||||
| Connection | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | |
| Standard Flow Rate | JOU-…(-A) | 700 | 1000 | 1200 | 2000 | 2600 | 2600 | 7000 | 8000 |
| JOU-…-7-(-A) | 800 | 1300 | 1500 | 2500 | 2800 | 2800 | 8500 | 8700 | |
| JOU-…-5M-(-A) | 600 | 850 | 1050 | 1700 | 1800 | 2100 | 6500 | 7200 | |
| Primary pressure | Manual drain valve | 1-16 bar | |||||||
| Automatic drain valve | 1.5-12 bar | ||||||||
| Working Pressure | 0.5-12 bar/0.5-7 bar | ||||||||
| Min Standard Flow Rate | 3L/MIN | 6L/MIN | 10L/MIN | ||||||
| Grade of filtration | 40um/5um | ||||||||
| Capacity of condensate fluid | 22ml | ||||||||
| Temperature range | 0-60 ℃ | ||||||||
| Material | Housing; Zinc die-casting; Filter bowl and oil bowl; PC;Metal bowl guard;Aluminium alloy;Sealing;NBR;Adjusting knob;POM |

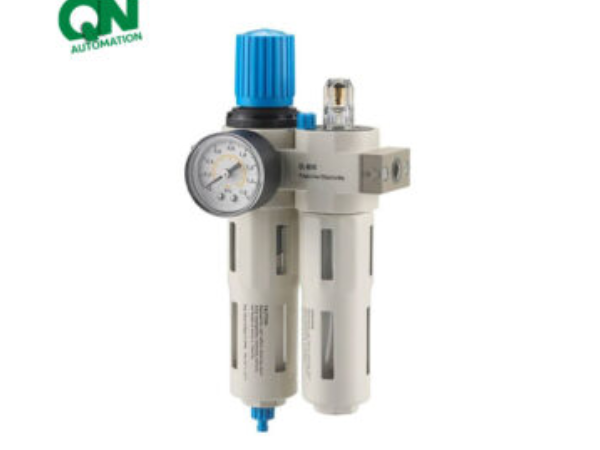

Product Introduction
Air Filter Combination with imported seal and grease, and high precision machining for heavy die-casting aluminum body, the air filter combination proves to high consistency, good performance and durability.
