Overview & Applications / Technical Specifications
| Model | JAW 1010 | JAW2010 | JAW2510 | JAW3010 | JAW4010 | JAW5010 |
| Guaranteed.pressure resistance | 1.5MPa | |||||
| Max.Working Pressure | 1.0MPa | |||||
| Working Temperature | 5~60℃ | |||||
| Filter precision | 25(5um is optional) | |||||
| Recommended Oil | Turbine No.1 oil ISOVG32 | |||||
| Bowl material | Polycarbonate | |||||
| Bowl guard | None | Available | ||||
| Pressure Adjusting Range | 0.05~0.7MPa | 0.05~0.85MPa | ||||
| Drain Function | Differential Drain Automatic Drain | |||||
| Valve type | With overflow |

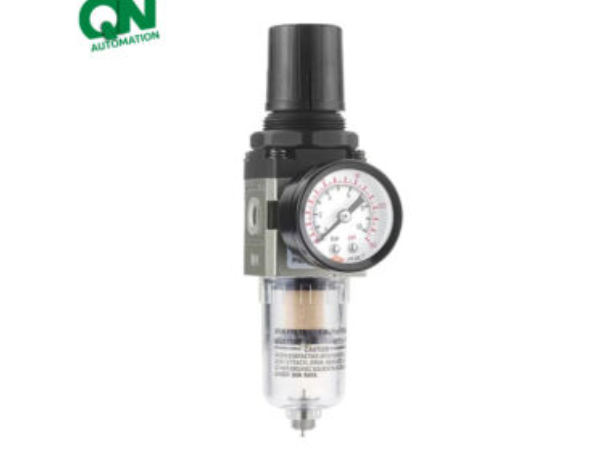

Product Introduction
Air filter regulator include a relieving regulator, which can be quickly locked by pushing down on the adjustment knob. There are many options, which include gauges, auto-drain, metal bowl and covers, different set pressures, etc.
Products Parameter
Product Feature And Application
Air compressor filter regulator Can filter small particles, keep the air clean and service life of the machines was prolonged.
