Overview & Applications / Technical Specifications
| AR/BR Series Air Pressure Regulator | |||||
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
| Working medium | AIR | ||||
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 |
| Adjusting pressure range | 0.05~0.85Mpa | ||||
| Max.Adjusting pressure | 0.95Mpa | ||||
| Guaranteed.pressure | 1.5Mpa | ||||
| Working temperature | 5~60°C | ||||
| Filter bowl capacity | 25(CC) | 90(CC) | |||
| Weight | 0.2kg | 0.23kg | |||
| Material of Body | Aluminum Die-castng Forming |
Product Introduction

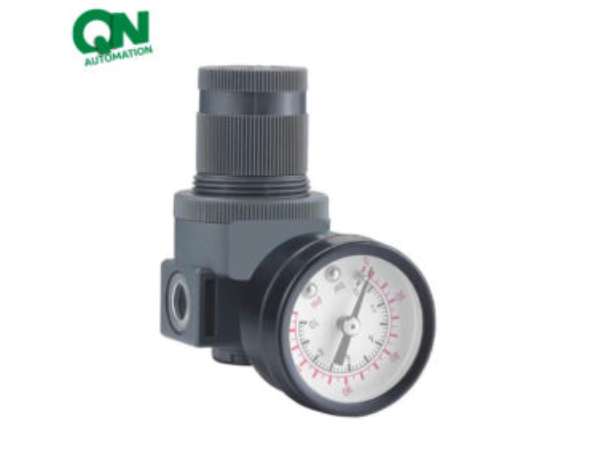

AR2000 Pneumatic Air Pressure Regulator is a hot sale model.
Because it is light and a short body can serve different compressors and machines also its good quality and price can help you to keep a good cost.
The pressure regulator keep the air pressure stable, which can reduce the damage to the components such as the valve or the actuator when the air pressure changes suddenly.
Feature:
1. Light and compact body, easy to install and use
2. Press-in self-locking design can prevent the setting pressure from being disturbed by external interference.
3. 100% tested products ensure good quality
4. competitive price
Products Parameter
