Overview & Applications / Technical Specifications
| Big Size 2" Automatic Drain Valve Oil Removal Filter | ||||||||||||||
| Model Type | Compact | Intermediate | Standard | Standard(H-flow) | Heavy duty | Heavy-Duty w/Auto-Drain | Heavy-Duty w/Auto-Drain(H-flow) | |||||||
| 4ZL23 | 4ZL25 | 4ZL31 | 4ZL33 | 4ZL35 | 4ZL43 | 4ZL45 | 4ZL53 | 4ZL54 | 4ZL18 | 4ZL19 | 4ZL20 | 4ZL21 | 4ZL22 | |
| Medium | ||||||||||||||
| Filter Precision | ||||||||||||||
| Working Pressure | ||||||||||||||
| Max. Working Resistance | ||||||||||||||
| Guaranteed Pressure Resistance | ||||||||||||||
| Working Temperature | ||||||||||||||
| Filter Bowl Capacity (cc) | 120 | 125 | 245 | 1200 | 4700 | 8500 | ||||||||
| Container Cup Material | Metal water cup: Zinc Alloy | Metal Water Cup: Aluminum Die-casting | Metal Water Cup: Aluminum Casting | |||||||||||
| Protective Cover | Without | |||||||||||||
| Nominal Flow Rate(cfm) | 10.5 | 10.5 | 21 | 21 | 21 | 20 | 35 | 60 | 60 | 90 | 125 | 250 | 300 | 600 |
| Weight (kg) | 0.7 | 0.7 | 0.65 | 0.65 | 0.65 | 0.82 | 0.82 | 1.1 | 1.1 | 2.1 | 2.1 | 12.5 | 12.5 | 17.5 |
| Port Size | NPT1/4 | NPT3/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/8 | NPT1/2 | NPT1/2 | NPT3/4 | NPT3/4 | NPT1 | NPT1-1/2 | NPT2 | NPT2 |
| * In order to increase the service life, we suggest you install 5µm' filter which will keep the efficiency of filter precision. * When the red annunciator shows up, under the circumstance of inlet and outlet's pressure are over 0.1 Mpa, Please change the filter element(or change it after one year) * G, NPT, PT port size is optional., |
| Model | M | B | C | D | E | P |
| 4ZL23 | 50 | 48 | 201 | 19 | 53 | NPT1/4 |
| 4ZL25 | 50 | 48 | 201 | 19 | 53 | NPT3/8 |
| 4ZL31 | 68 | 62 | 216 | 25 | 60 | NPT1/4 |
| 4ZL33 | 68 | 62 | 216 | 25 | 60 | NPT3/8 |
| 4ZL35 | 68 | 62 | 216 | 25 | 60 | NPT1/2 |
| 4ZL43 | 80 | 73 | 237 | 25.5 | 60 | NPT3/8 |
| 4ZL45 | 80 | 73 | 237 | 25.5 | 60 | NPT1/2 |
| 4ZL53 | 80 | 73 | 290 | 25.5 | 60 | NPT1/2 |
| 4ZL54 | 80 | 73 | 290 | 25.5 | 60 | NPT3/4 |
| 4ZL18 | 121 | 110 | 276 | 32 | 66 | NPT3/4 |
| 4ZL19 | 121 | 110 | 276 | 32 | 66 | NPT1 |
| 4ZL20 | 209 | 207 | 479 | 47 | 80 | NPT1-1/2 |
| 4ZL21 | 209 | 207 | 479 | 47 | 80 | NPT2 |
| 4ZL22 | 209 | 207 | 678 | 47 | 80 | NPT2 |
- 0.01μm could provide equipment with high quality air, it remove the wear caused by impurities, thereby improving the equipment's lifetime.
- 8500cc's filter bowl capacity could go with 600 nominal flow rate, high flow and large bowl capacity could give you large capacity cleared air in short time.
Description

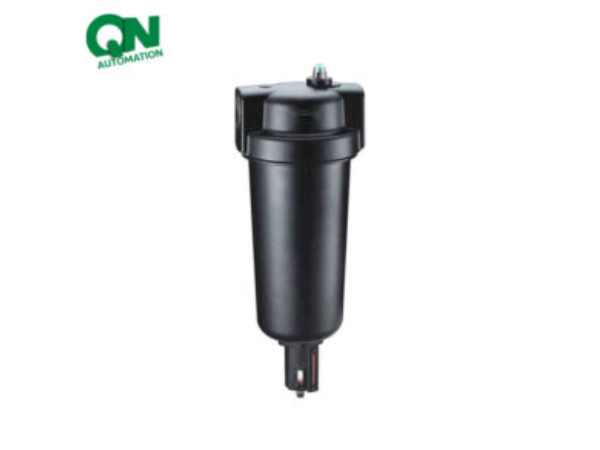

4ZL22：4ZL22 is big size 2'' oil removal filter, it is widely used in big equipment to ensure good quality air go through the machine.
It also equipped with automatic drain valve that could physically drain out the water when water level goes high.
Features:
Specifications:
