Overview & Applications / Technical Specifications

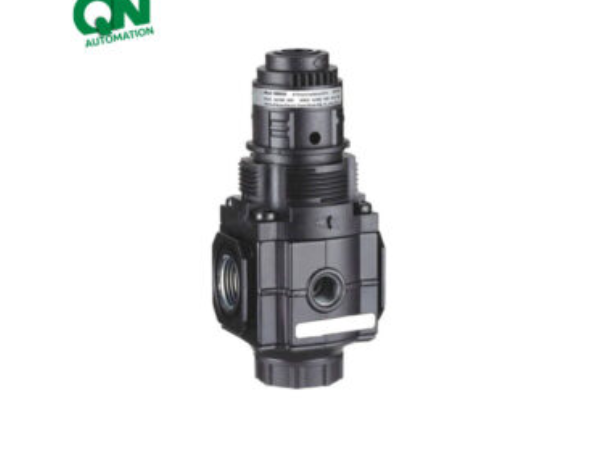

| Constant Bleed Regulator Precision Air Pressure Regulator | ||||||||||
| Model Type | Miniature (Piston) | Miniature | Miniature (Brass Valve) | Compact | Compact (Constant Output Pressure0.2 Mpa | Compact (Multi Aperture) | ||||
| 4ZM13 | 4ZM07 | 4ZM08 | 4ZM05 | 4ZM06 | 4ZM14 | 4ZM15 | 1WH33 | 4ZM16 | 4ZM17 | |
| Medium | Compressed Air | |||||||||
| Pressure Adjusting Range | 0.05~0.85MPA(5psi~125psi) | 0.05~1MPA(5psi~150psi) | 0.2MPA(30psi) | 0.05~1MPA(5psi~150psi) | ||||||
| Max. working resistance | 1.7MPA(250psi) | 2MPA（300psi） | 2.7MPA（400psi） | 2MPA（300psi） | ||||||
| Working Temperature | —5~65℃（ No Freeze） | |||||||||
| Nominal Flow Rate(cfm) | 12 | 14 | 15 | 10 | 10 | 70 | 70 | 70 | 83 | 83 |
| Weight (kg) | 0.12 | 0.16 | 0.15 | 0.23 | 0.23 | 0.45 | 0.45 | 0.43 | 0.45 | 0.43 |
| Port Size-NPT | 1/4 | 1/8 | 1/4 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/4 | 3/8 |
| Pressure Gauge Port Size | NPT1/8 | |||||||||
| G, NPT,PT Port size is optional. |
| Model | A | AB | AC | B | BA | C | CA | CB | CC | E | J | K | KA | KB | KC | KD | P | Q |
| 1WH33 1/4 | 50.5 | 49 | 34.7 | 95 | 49.5 | 106 | 32.5 | 73.5 | 26 | 41 | NPT1/8 | 4.5 | 8 | 39 | 36 | 43 | NPT1/4 | UN1 9/16-16 |
| 1WH33 3/8 | 50.5 | 49 | 34.7 | 95 | 49.5 | 106 | 32.5 | 73.5 | 26 | 41 | NPT1/8 | 4.5 | 8 | 39 | 36 | 43 | NPT3/8 | UN1 9/16-16 |
1WH33：1WH33 is a special regulator which can't adjust pressure, it was set up a fixed pressure in factory, that's why it can't change pressure after it leaves factory. The outlet pressure is optional from 5psi~150psi in your demand.
Features:
1. If there is no other requirement, the default output pressure is 30psi.
2. It with two choice for port size 3/8 and 1/4.
3. Zinc material is bring with stable working performance.
Specifications:
