Overview & Applications / Technical Specifications
| Model Type | 2FRL20M | 2FRL25M | 2FRL30M | 2FRL40M | ||||||
| 2FRL25M-02 | 2FRL25M-03 | 2FRL30M-02 | 2FRL30M-03 | 2FRL30M-04 | 2FRL40M-03 | 2FRL40M-04 | 2FRL40M-05 | |||
| Medium | Compressed Air | |||||||||
| Filter Precision | 5um（40um is optional） | |||||||||
| Pressure Adjusting Range | 0.05~1Mpa(5psi~150psi) | |||||||||
| Max.Working Resistant | 1.7Mpa(250psi) | |||||||||
| Guaranteed Pressure Resistant | 2.5Mpa(365psi) | |||||||||
| Working Temperature | —5~80℃（No Freeze） | |||||||||
| Filter Bowl Capacity/CC | 120 | 125 | 245 | |||||||
| Oil Cup Capacity/CC | 80 | 85 | 155 | |||||||
| Container Cup Material | Metal Water Cup: Zinc Allloy | Metal Water Cup: Aluminum Die-casting | ||||||||
| Protective Cover | With | |||||||||
| Nominal Flow Rate/cfm | 51 | 51 | 60 | 60 | 60 | 114 | 192 | 186 | ||
| Recommended Lubricator Oil | Turbine No.1 Oil ISOVG32 | |||||||||
| Weight/KG | 1.4 | 1.6 | 2 | |||||||
| Pressure Gauge Port Size | G1/8,NPT1/8，PT1/8(Optional) | G1/4,NPT1/4，PT1/4 (Optional) | ||||||||
| *In order to ensure the filter precision,we suggest you to clean or change the filter element after 1 or 2 month. *G, NPT, PT port size is optional. *After the process of micro mist, the air with oil can inject about 12-15 meters. *After the process of mist, the air with oil can inject about 4.5-6 meters. |
Product Introduction

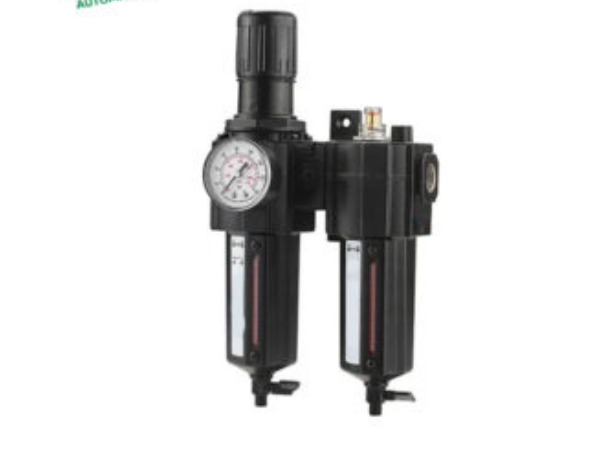

Filter regulator lubricator unit applicable to remove solid foreign objects sized 5μm or more and oversaturated water contained in the compressed air, prevent malfunction of actuators and solenoid valves, control (regulate) the outlet pressure, suppress fluctuations of the outlet pressure affected by fluctuations of the inlet pressure, and apply oil to pneumatic equipment at the outlet side.
Products Parameter
