Overview & Applications / Technical Specifications

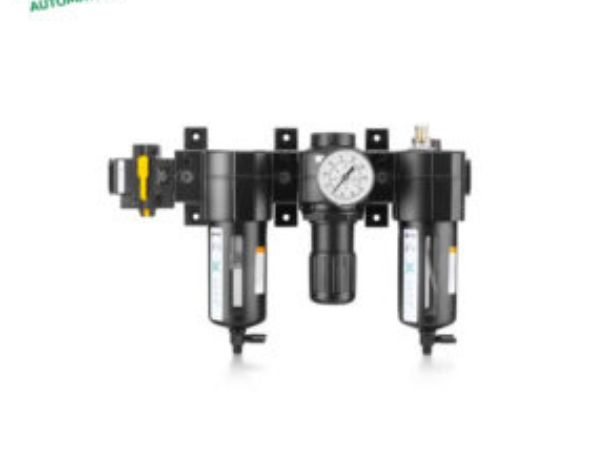

| High pressure modular FRL with lock valve | |
| Model Type | Compact |
| 3FRL25C-02 | 3FRL25C-03 |
| Medium | Compressed Air |
| Filter Precision | 5um (40 um is optional) |
| Pressure Adjusting Range | 0.05~1MPA(5~150psi) |
| Max. working resistance | 1MPA(150psi) |
| Guaranteed Pressure Resistance | 1.5MPA(220psi) |
| Working Temperature | —5~50℃（No Freeze） |
| Filter Bowl Capacity (cc) | 75 |
| Oil Cup Capacity (cc) | 45 |
| Container Cup Material | Water Cup: Polycarbonate |
| Protective Cover | With |
| Recommended Oil | ISO VG32)/Turbine No.Oil ISOVG32 |
| Nominal Flow Rate(cfm) | 51 |
| Weight (kg) | 1.6 |
| Port Size | NPT1/8 (G1/8, PT1/8 Optional) |
| * In order to increase the service life, we suggest you install 5µm' filter which will keep the efficiency of filter precision. * When the red annunciator shows up, under the circumstance of inlet and outlet's pressure are over 0.1 Mpa, Please change the filter element(or change it after one year) * G, NPT, PT port size is optional., Hot Tags: high pressure modular frl with lock valve, Italy, manufacturers, suppliers, factory, wholesale, customized, bulk, price, quotation, in stock, Air Control Plastic Angle Seat Valve, Mini Pneumatic Cylinder, Pneumatic Air Source Treatment Unit, 1 2 NPT Pneumatic Air Filter, Pneumatic Foot Valve, Electric Brass Water Valve |
- Independent modular design, it's easy to assembly and change, it helps extend life time.
- The stop switch valve can be assembled in the closed position only, it should installed in the pressure inlet of pneumatic treatment.
3FRL-25CP-02：3FRL-25CP-02 with lockout valve, this high working pressure 150psi FRL is with higher standard than normal FRL. JXPC use zinc material for valve body, water cup and stop switch (lock) to give you good working performance.
Features:
Specifications:
