Overview & Applications / Technical Specifications
| Specifications for Polycarbonate Cup | ||||
| Model Type | Miniature | Compact | ||
| 4ZL07 | 4ZL08 | 4ZL28 | 4ZL30 | |
| Medium | Compressed Air | |||
| Filter Precision | 5µm(40µm is optional) | |||
| Working Pressure | 0.85MPA(125psi) | |||
| Max. Working Pressure | 1MPA(150psi) | |||
| Guaranteed. Pressure Resistance | 1.5MPA(220psi) | |||
| Working Temperature | —5~50℃(No Freeze) | |||
| Filter Bowl Capacity (cc) | 40 | 75 | ||
| Container Cup Material | Water Cup: Polycarbonate | |||
| Protective Cover | Without | With | ||
| Nominal Flow Rate(cfm) | 19 | 24 | 55 | 55 |
| Weight (kg) | 0.14 | 0.14 | 0.58 | 0.59 |
| Port Size-NPT | PT1/8 | PT1/4 | PT1/4 | PT3/8 |
| * In order to ensure the filter precision, we suggest you to clean or change the filter element after 1 or 2 month. | ||||
| * G, NPT, PT is optional. |
| Dimensions for Polycarbonate Cup | |||||
| Model | A | B | C | D | P |
| 4ZL07 | 41.5 | 37 | 106 | 9.5 | NPT1/8 |
| 4ZL08 | 41.5 | 37 | 106 | 9.5 | NPT1/4 |
| 4ZL27 | 50 | 48 | 167 | 19 | NPT1/4 |
| 4ZL28 | 50 | 48 | 167 | 19 | NPT3/8 |

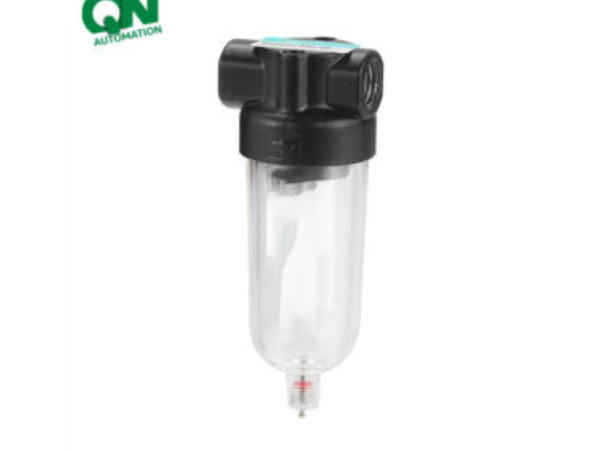

Product Introduction
4ZL08: High precision air filter, the removal function is better than the normal filters, and the technical has surpassed the international leading level, it with high reliable and long life time.
Feature:
The filter filters oil and water efficiently, can reach 0.01µm precision after filter, easy to assembly. Good quality with favorable price, beautiful appearance and enhanced anti-oxidation.
Description
1. Temperature Range: -5-50 Degree
2. Filter Precision: 5µm(40µm is optional)
3. Valve Body Material: Zinc
Specifications:
