Overview & Applications / Technical Specifications
| Lung ventilator respiratory machine high precision 0.01μm oil Filter | ||||||||||
| Model Type | Miniature | Compact | Intermediate | Standard | Standard(H-flow) | |||||
| 4ZL16 | 4ZL17 | 4ZL24 | 4ZL26 | 4ZL32 | 4ZL34 | 4ZL36 | 4ZL44 | 4ZL46 | 4ZL55 | |
| Medium | Compressed Air | |||||||||
| Filter Precision | Filter precision 0.01μm | |||||||||
| Working Pressure | 0.85MPA(125psi) | |||||||||
| Max. Working Pressure | 1MPA(150psi) | |||||||||
| Guaranteed. Pressire Resistance | 1.5MPA(220psi) | |||||||||
| Working Temperature | —5~50℃（No Freeze） | |||||||||
| Filter Bowl Capacity (cc) | 40 | 75 | 120 | 230 | ||||||
| Container Cup Material | Water Cup: Polycarbonate | |||||||||
| Protective Cover | Without | With | ||||||||
| Nominal Flow Rate(cfm) | 6 | 6.5 | 10.5 | 10.5 | 21 | 21 | 21 | 20 | 35 | 60 |
| Weight (kg) | 0.15 | 0.12 | 0.645 | 0.63 | 0.65 | 0.65 | 0.65 | 0.82 | 0.82 | 1.1 |
| Port Size-NPT | G1/8 | G1/4 | G1/4 | G3/8 | G1/4 | G3/8 | G1/2 | G3/8 | G1/2 | G3/4 |
| * In order to increase the service life, we suggest you install 5µm' filter which will keep the efficiency of filter precision. * When the red annunciator shows up, under the circumstance of inlet and outlet's pressure are over 0.1 Mpa, Please change the filter element(or change it after one year) * G, NPT, PT port size is optional. |
| Model | A | B | C | D | E | P |
| 4ZL16 | 41.5 | 37 | 106 | 9.5 | NPT1/8 | |
| 4ZL17 | 41.5 | 37 | 106 | 9.5 | NPT1/4 | |
| 4ZL24 | 50 | 48 | 201 | 19 | 53 | NPT1/4 |
| 4ZL26 | 50 | 48 | 201 | 19 | 53 | NPT3/8 |
| 4ZL32 | 68 | 62 | 216 | 25 | 60 | NPT1/4 |
| 4ZL34 | 68 | 62 | 216 | 25 | 60 | NPT3/8 |
| 4ZL36 | 68 | 62 | 216 | 25 | 60 | NPT1/2 |
| 4ZL44 | 80 | 73 | 237 | 25.5 | 60 | NPT3/8 |
| 4ZL46 | 80 | 73 | 237 | 25.5 | 60 | NPT1/2 |
| 4ZL55 | 80 | 73 | 290 | 25.5 | 60 | NPT3/4 |
- This oil filter could remove 99% impurities, include oil, water and particles in compressed air.
- The filter with small size, light weight, fast in filtration speed, pollution-free, thermally dilute and chemically stable.
Description

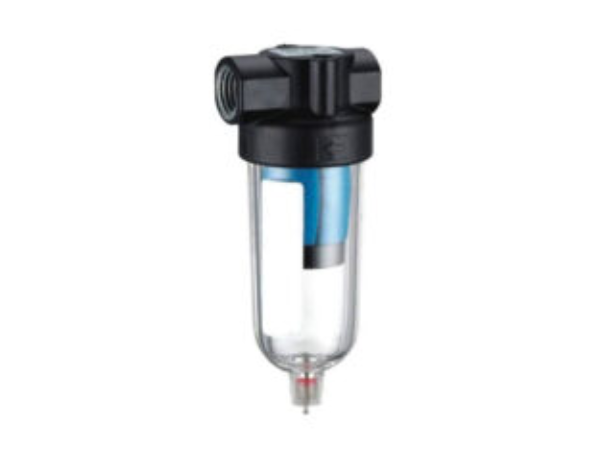

4ZL17：Lung ventilator respiratory machine high precision 0.01μm oil Filter, this highly precision air filter is widely used in Lung Ventilators.
It is to provide good condition for multimeter, so as to ensure correct data in lung ventilators.
Features:
Specifications:
