Overview & Applications / Technical Specifications
| Regulators | MIN | MIDI | MAXI | ||||||
| Working pressure 12bar | JOR-1/8"-MINI | JOR-1/4"-MINI | JOR-3/8"-MINI | JOR-3/8"-MIDI | JOR-1/2"-MIDI | JOR-3/4"-MIDI | JOR-3/4"-MAXI | JOR-1"-MAXI | |
| Working pressure 7bar | JOR-1/8"–7MINI | JOR-1/4"–7MINI | JOR-3/8"–7MINI | JOR-3/8"-7-MIDI | JOR-1/2"-7-MIDI | JOR-3/4"-7-MIDI | JOR-3/4"-7-MAXI | JOR-1"-7-MAXI | |
| Manometer | 0-12bar | OMA-40-16-1/8 | OMA-50-16-1/4 | ||||||
| 0-7bar | OMA-40-10-1/8 | OMA-50-10-1/4 | |||||||
| Medium | Filtered, compressed Air(Lubricated or unlubricated) | ||||||||
| Features of Structure | MINI/MIDI: Diaphragm type regulator MAXI: Piston regulator | ||||||||
| Mounting Type | pipe / foot / plate mounting | ||||||||
| Assembly position | any | ||||||||
| Connection | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | |
| Standard Flow Rate | JOR-… | 800 | 1500 | 1700 | 3200 | 3500 | 3500 | 11000 | 11500 |
| JOR-…-7- | 1000 | 1600 | 1800 | 3300 | 4000 | 4500 | 12000 | 12500 | |
| Primary pressure | 1-16 bar | ||||||||
| Working Pressure | 0.5-12bar / 0.5-7bar | ||||||||
| Temperature range | 0-60℃ | ||||||||
| Material | Housing; Zinc die-casting; Filter bowl and oil bowl sealing;NBR;Adjusting knob;POM |
Product Introduction

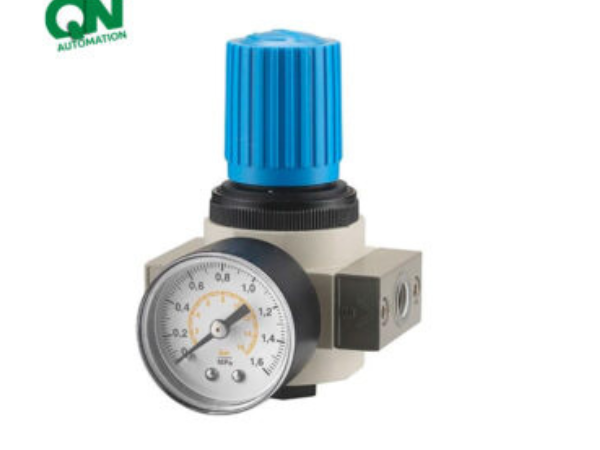

The Mini air pressure regulator with gauge maintain inputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed. This mini air regulator allows you to control air pressure for better results and to prolong the life of your air tools. A great tool for anyone working with pneumatic tools.
Products Parameter
Product Feature And Application
Mini air pressure regulator with gauge can compressed air . The regulator is an indispensable device on the conveying medium pipe,. Usually installed at the inlet end of the pressure regulator, lubricator and other equipment of the filter.
