Overview & Applications / Technical Specifications

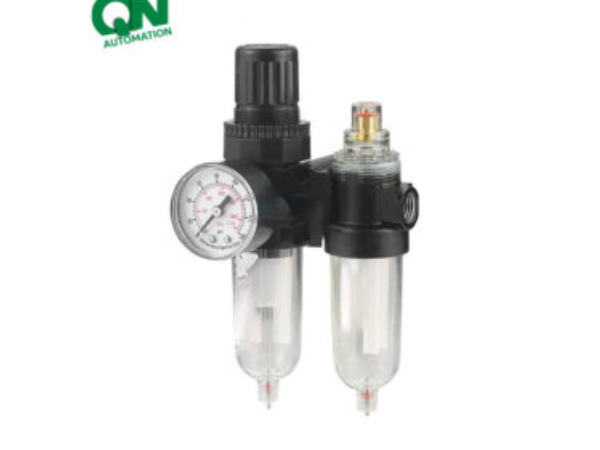

| Plastic Cup Mist Lubricator FRL Two Unit | |
| Model Type | 2FRL20C |
| 2FRL20C-02 | |
| Medium | Compressed Air |
| Filter Precision | 5um (40 um is optional) |
| Pressure Adjusting Range | 0.05~1MPA(5~150psi) |
| Max. Working Resistant | 1MPA(150psi) |
| Guaranteed Pressure Resistant | 1.5MPA(220psi) |
| Working Temperature | —5~50℃（No Freeze） |
| Filter Bowl Capacity/CC | 40 |
| Oil Cup Capacity/CC | 20 |
| Container Cup Material | Water Cup: Polycarbonate |
| Protective Cover | |
| Nominal Flow Rate/cfm | 10 |
| Recommended Lubricator Oil | Turbine No.Oil ISOVG32 |
| Weight/KG | 0.48 |
| Pressure Gauge Port Size | NPT1/8 (G1/8,PT1/8 optional) |
| *In order to ensure the filter precision,we suggest you to clean or change the filter element after 1 or 2 month. | |
| *After the process of micro mist, the air with oil can inject about 12-15 meters. | |
| *After the process of mist, the air with oil can inject about 4.5-6 meters. |
- High working pressure 150psi than normal FRL units.
- All products are produced with imported spray-paint, it bring with beautiful appearance and enhanced anti-oxidation.
2FRL25CW-02：2FRL25CW-02 plastic cup mist lubricator FRL two unit, you could decide lubricator micro mist and mist two injection way. Micro mist is injecting air with oil about 12-15 meters; Mist can inject about 4.5-6 meters.
Features:
Specifications:
