Overview & Applications / Technical Specifications
| Pneumatic Air Brass Regulator 1/4" | ||||||||||
| Model Type | Miniature (Piston) | Miniature | Miniature (Brass Valve) | Compact | Compact (Constant Output Pressure0.2 Mpa | Compact (Multi Aperture) | ||||
| 4ZM13 | 4ZM07 | 4ZM08 | 4ZM05 | 4ZM06 | 4ZM14 | 4ZM15 | 1WH33 | 4ZM16 | 4ZM17 | |
| Medium | Compressed Air | |||||||||
| Pressure Adjusting Range | 0.05~0.85MPA(5psi~125psi) | 0.05~1MPA(5psi~150psi) | 0.2MPA(30psi) | 0.05~1MPA(5psi~150psi) | ||||||
| Max. working resistance | 1.7MPA(250psi) | 2MPA（300psi） | 2.7MPA（400psi） | 2MPA（300psi） | ||||||
| Working Temperature | —5~65℃（ No Freeze） | |||||||||
| Nominal Flow Rate(cfm) | 12 | 14 | 15 | 10 | 10 | 70 | 70 | 70 | 83 | 83 |
| Weight (kg) | 0.12 | 0.16 | 0.15 | 0.23 | 0.23 | 0.45 | 0.45 | 0.43 | 0.45 | 0.43 |
| Port Size-NPT | 1/4 | 1/8 | 1/4 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/4 | 3/8 |
| Pressure Gauge Port Size | NPT1/8 | |||||||||
| G, NPT,PT Port size is optional. |
| Model | A | AB | AC | B | BA | C | CA | CB | CC |
| 4ZM05 | 41 | 38.5 | 28 | 76~93 | 37.6 | 84 | 20 | 64 | 22.5 |
| 4ZM06 | 41 | 38.5 | 28 | 76~93 | 37.6 | 84 | 20 | 64 | 22.5 |
| 4ZM07 | 44 | 38.5 | 28 | 76~93 | 41.5 | 84 | 20.5 | 63.5 | 24 |
| Model | E | J | K | KA | KB | KC | KD | P | Q |
| 4ZM05 | 41 | NPT1/8 | 5.5 | 13 | 28.5 | 32.2 | 40.3 | NPT1/8 | UNEF1 3/16-18 |
| 4ZM06 | 41 | NPT1/8 | 5.5 | 13 | 28.5 | 32.2 | 40.3 | NPT1/4 | UNEF1 3/16-18 |
| 4ZM07 | 41 | NPT1/8 | 5.5 | 13 | 28.5 | 33.7 | 41.8 | NPT1/8 | UNEF1 3/16-18 |

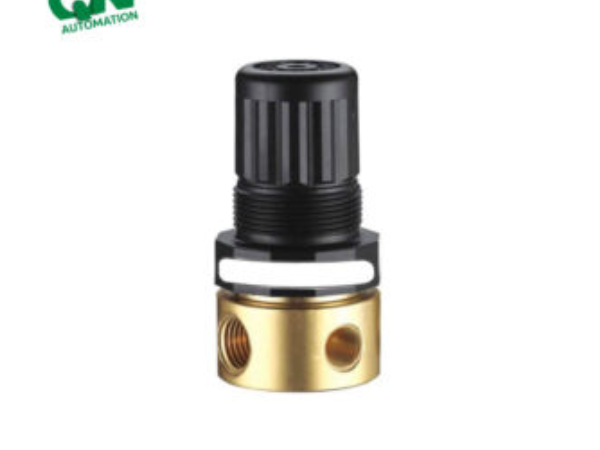

4ZM06: 4ZM06 is brass material regulator with 400psi max working pressure, which differs to normal material aluminum 300psi. This pressure regulator is use with air compressor, air gun, filter and lubricator, etc.
Features:
1. Its adjusting pressure range is 5psi~125psi.
2. Brass material with more stable performance and high pressure than normal regulator
3. It's also not easy to get corrosion, so the air flow rate will not be influenced.
Specifications:
