Overview & Applications / Technical Specifications
| JAL 1000-5000 Series Lubricator | ||||||
| Model | JAL 1000 | JAL 2000 | JAL 2500 | JAL3000 | JAL 4000 | JAL 5000 |
| Guaranteed. pressure resistance | 1.5MPa | |||||
| Max. Working Pressure | 1.0MPa | |||||
| Working Temperature | 5~60℃ | |||||
| Filter precision | 25um(5um is optional) | |||||
| Recommended Oil | Turbine No.1 oil ISOVG32 | |||||
| Bowl material | Polycarbonate | |||||
| Bowl guard | None | Available | ||||
| Valve type | With overflow |

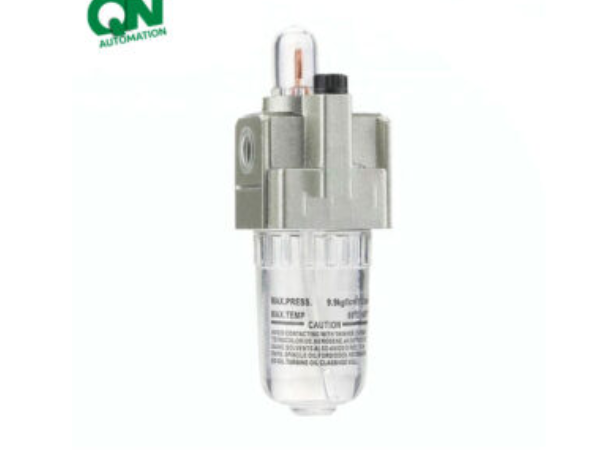

JAL series lubricator with light and handy structure, reasonable design and beautiful appearance, easy to install, the products can be assembled or dissembled at option to use, and can meet requirements of various pneumatic systems.
The compressed air passing through the nozzle is generated when the pressure drops, forcing the oil from the oil cup from the oil window, at the same time by atomization, the mist flow is minimal. The wear of drive parts can be reduced.
Features:
1. Guaranteed. pressure 1.5 Mpa
2. Filter precision: 25um(5um is optional)
3. Bowl material: Polycarbonate
Specifications:
