Overview & Applications / Technical Specifications
| Model | JAC 1010 | JAC2010 | JAC 2510 | JAC3010 | JAC4010 | JAC 5010 |
| Guaranteed.pressure resistance | 1.5MPa | |||||
| Max.Working Pressure | 1.0MPa | |||||
| Working Temperature | 5~60℃ | |||||
| Filter precision | 25(5um is optional) | |||||
| Recommended Oil | Turbine No.1 oil ISOVG32 | |||||
| Bowl material | Polycarbonate | |||||
| Bowl guard | None | Available | ||||
| Pressure Adjusting Range | 0.05~0.7MPa | 0.05~0.85MPa | ||||
| Drain Function | Differential Drain Automatic Drain | |||||
| Valve type | With overflow |
Product Introduction

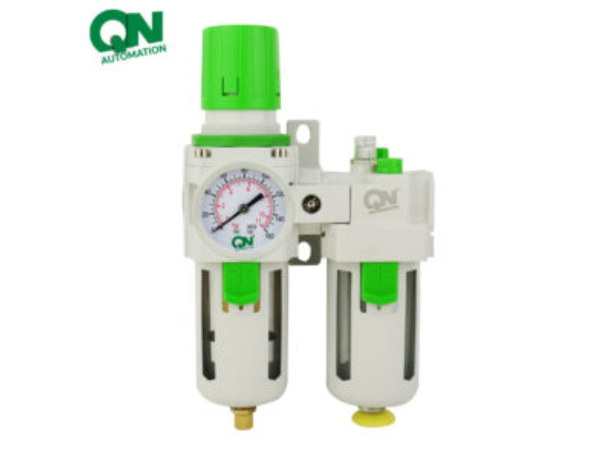

Pneumatic air source treatment Unit consisted of pneumatic filter, regulator, and lubricator each unit can be ordered separately.The filter with water separator cleans the compressed air of fluid oil, condensation and dirt particles. For special application, the standard 40μm filter element many easily be replaced by a 5μm filter element. The regulator maintain inputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
Products Parameter
