Overview & Applications / Technical Specifications

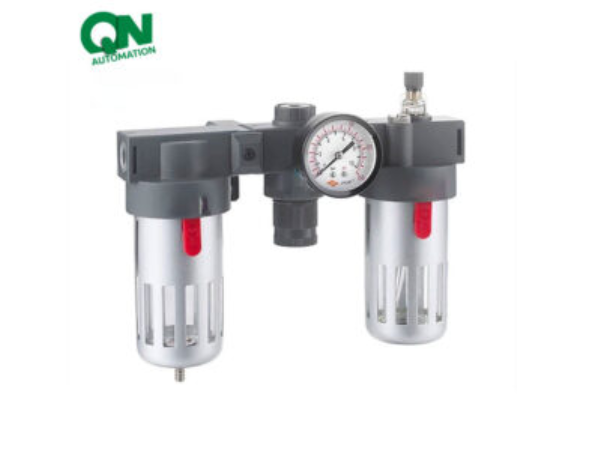

| Pneumatic Component Air Combination BC3000 G3/8 Filter Regulator Lubricator | ||
| Model | BFC3000 | |
| Working medium | Filtered compressed Air | |
| Port size | G3/8 | |
| Filter precision | 25um(5,40um is optional) | |
| Adjusting pressure range | 0.05~0.85Mpa | |
| Max. Adjusting pressure | 0.95Mpa | |
| Guaranteed. Pressure | 1.5Mpa | |
| Working temperature | 5~60°C | |
| Filter bowl capacity | 15(CC) | |
| Lubricator bowl capacity | 25(CC) | |
| Recommended Oil | ISO VG32 or Equivalent Oil | |
| Weight | 1.29kg | |
| components | Filter Regulator | BFR3000 |
| Lubricator | BL3000 |
Product Introduction
Grey type FRL is updated design from valve body's internal structure and product appearance. QN adopted more humanized design which enable the hand wheel more comfortable for using, the higher treatment for internal structure bring product with longer lifetime.
Feature:
1.Economical selection for different requirements of pneumatic system
2.Various body and port size for choose
3.Customized bowl cup for higher technical request
Specification
