Overview & Applications / Technical Specifications

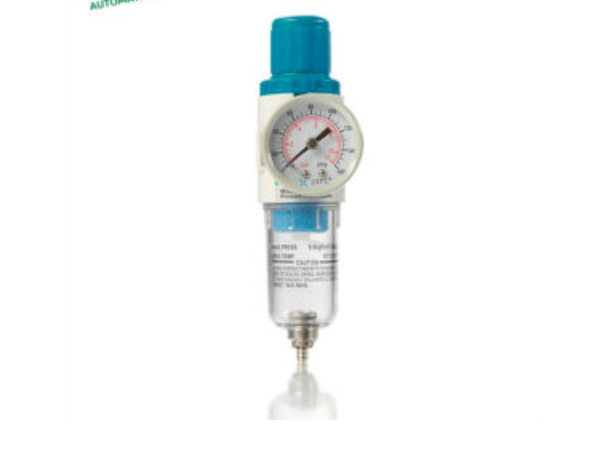

| Pneumatic Miniature Air Filter Regulator 1/4" BSP AFR2000 Bracket & Gauge | ||
| Model | AFR1500 | AFR2000 |
| Working medium | AIR | |
| Port size | G1/8 | G1/4 |
| Filter precision | 40um(5,50um is optional) | |
| Adjusting pressure range | 0.05~0.85Mpa | |
| Max. Adjusting pressure | 0.95Mpa | |
| Guaranteed. pressure | 1.5Mpa | |
| Working temperature | 5~60°C | |
| Filter bowl capacity | 15(CC) | |
| Weight | 0.7kg |
Product Introduction
Feature:
1.Manual drain or automatic drain for choosing
2.Light weight, small body size, it's very easy for installation and maintenance.
3.NPT, PT thread type are all optional
Specification
