Overview & Applications / Technical Specifications
| Precision air relieving regulator with accurate flow rate | |
| Fluid | Air( No other gases or liquids) |
| Max. supply pressure | Max 1.0 MPa |
| Set Pressure | 0.005 to 0.2MPa |
| Air consumption (At supply pressure of 1.0MPa) | 4.4 L/min(ANR) or less |
| Ambient and fluid temperature | -5 to 60nC (No Freezing |
- JIR2000 could adjust accurate working pressure from 0-8bar.
- The working pressure could be set up to a fixed output working pressure.
- Unique new structure reduced the air-line's consumption.

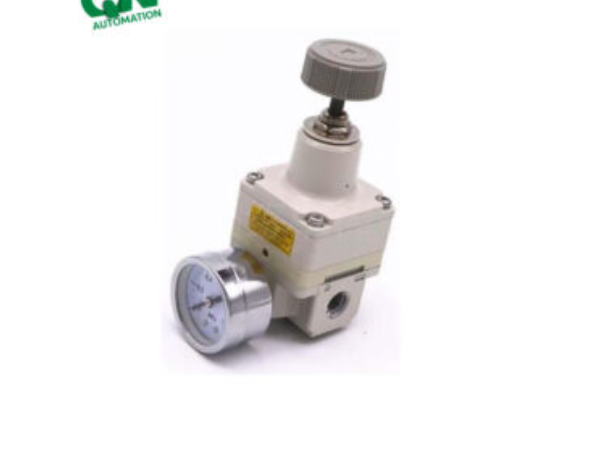

This air regulator can output a constant output pressure by a roiling diaphragm. JIR2000 only with 50mm body width which is compact body size, it's G1/4 port size for inlet and outlet port size, G1/8 for pressure two gauges.. and it with light weight for working environment.
Feature:
Specification
