Overview & Applications / Technical Specifications
| Zinc Material Miniature Nonrising Compressor Regulator | ||||||||||
| Model Type | Miniature (Compressor) | Miniature | Miniature (Brass Valve) | Compact | Compact (Constant Output Pressure0.2 Mpa | Compact (Multi Aperture) | ||||
| 4ZM13 | 4ZM07 | 4ZM08 | 4ZM05 | 4ZM06 | 4ZM14 | 4ZM15 | 1WH33 | 4ZM16 | 4ZM17 | |
| Medium | Compressed Air | |||||||||
| Pressure Adjusting Range | 0.05~0.85MPA(5psi~125psi) | 0.05~1MPA(5psi~150psi) | 0.2MPA(30psi) | 0.05~1MPA(5psi~150psi) | ||||||
| Max. working resistance | 1.7MPA(250psi) | 2MPA（300psi） | 2.7MPA（400psi） | 2MPA（300psi） | ||||||
| Working Temperature | —5~65℃（ No Freeze） | |||||||||
| Nominal Flow Rate(cfm) | 12 | 14 | 15 | 10 | 10 | 70 | 70 | 70 | 83 | 83 |
| Weight (kg) | 0.12 | 0.16 | 0.15 | 0.23 | 0.23 | 0.45 | 0.45 | 0.43 | 0.45 | 0.43 |
| Port Size-NPT | 1/4 | 1/8 | 1/4 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/4 | 3/8 |
| Pressure Gauge Port Size | NPT1/8 | |||||||||
| G, NPT,PT Port size is optional. |
- Zinc material bring with good quality than normal pressure regulator.
- Its small body is very easy to mount in equipment.
- Its structural design and material selection make it not afraid of dust clogging.

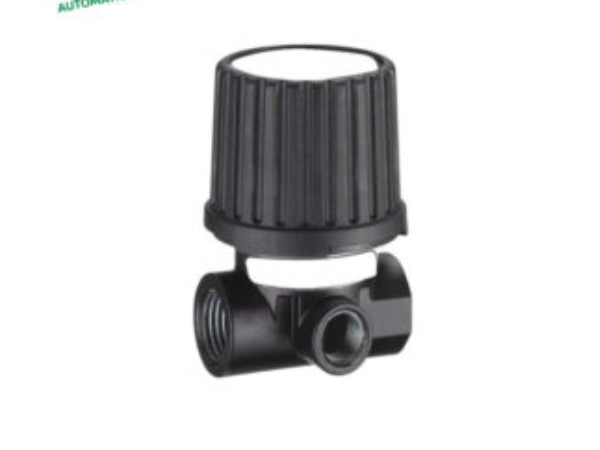

4ZM13: 4ZM13 is zinc material high precision miniature compressor regulator, this air pressure regulator is able to regulate 5~125psi.
It could bring with high precision, and structure design better than traditional regulator.
Features:
Specifications:
